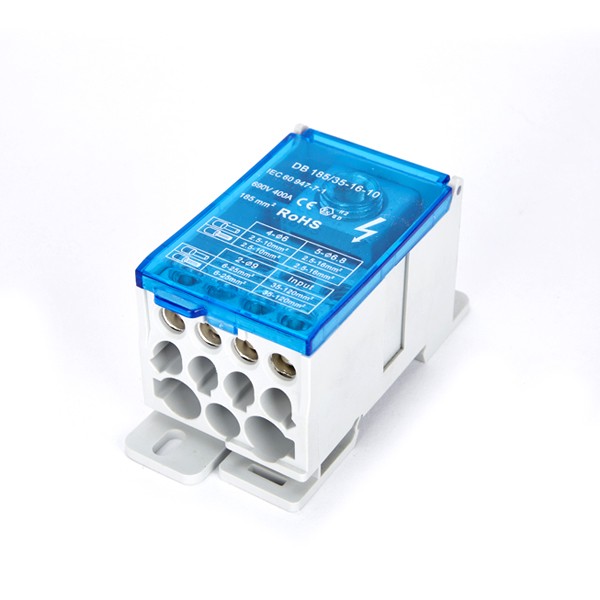

Model:WTUD400A
Max Current Rating, IEC:400A
Max Working Voltage, IEC (Ui):1,000 VAC/DC
Line Side Compact Stranded Wire Size:95 - 185 mm²
Terminal Block Features:
Space saving: compact
Tinned copper block: high conductivity
Visual inspection of wire: confirmation of connection
Hinged or removable cover: easy wiring
Clip-on DIN rail or mount to panel with screws: easy fixing
| Part Number | WTUD400A |
| Max Current Rating, IEC | 400A |
| Max Current Rating, UL/CSA | 335A |
| Finish | Tinned |
| Line Side Connection | Cable |
| Load Side Connection | 11 Cables |
| Material | Copper Thermoplastic |
| Line Side Max Conductor Size, IEC | 185mm² |
| Load Side Max Conductor Size, IEC | 35 mm² |
| Max Working Voltage, IEC (Ui) | 1,000 VAC/DC |
| Max Working Voltage, UL (Vin) | 600 V |
| Short Term Withstand Current (Icw) 1s | 24.5kA |
| Peak Short Circuit Current (Ipk) | 51 kA |
| Rated Conditional Short-Circuit Current (Icc) | 24.3 kA |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Line Side Number of Connections | 1 |
| Line Side Compact Stranded Wire Size | 95- 185mm² |
| Line Side Wire Size | 3/0 – 400Kcmil |
| Load Side Number of Connections | 11 |
| Load Side Compact Stranded Wire Size | (2) 6 - 35 mm² (5) 2,5 - 16 mm² (4) 2.5- 10mm² |
| Load Side Stranded Wire Size - Ferrule | (2) 6-25mm² （5）2.5-16mm² （4）2.5-10mm² |
| Load Side Wire Size | (2) #10 - #1 （5）#14-#4 Solid (4) #14 - #6 |
| Enclosure Rating | IP 20 |
| Unit Weight | 0.4 kg |
| Flammability Rating | 94V-0 |
