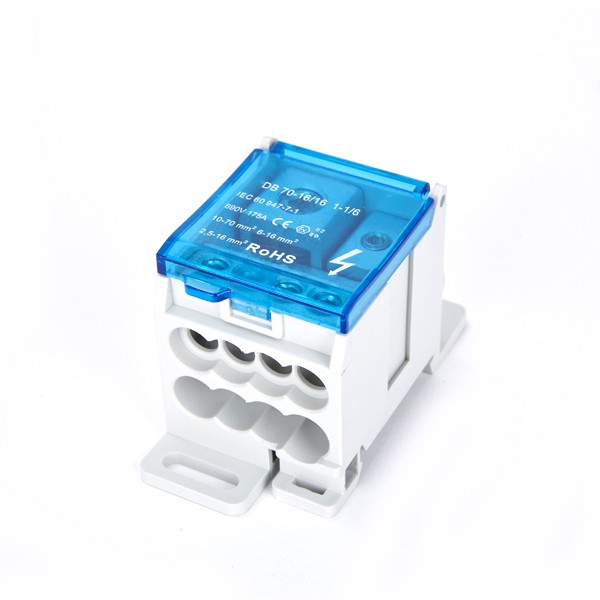

Mode No:WTUD175A
Line Side Compact Stranded Wire Size: 10 - 70 mm²
Max Working Voltage, IEC (Ui):1,000 VAC/DC
Enclosure Rating:IP 20
Terminal Block Features:
Space saving: compact
Tinned copper block: high conductivity
Visual inspection of wire: confirmation of connection
Hinged or removable cover: easy wiring
Clip-on DIN rail or mount to panel with screws: easy fixing
| Part Number | WTUD175A |
| Max Current Rating, IEC | 175A |
| Max Current Rating, UL/CSA | 200A |
| Finish | Tinned |
| Line Side Connection | Cable |
| Load Side Connection | 7 Cables |
| Material | Copper Thermoplastic |
| Line Side Max Conductor Size, IEC | 70 mm² |
| Load Side Max Conductor Size, IEC | 16 mm² |
| Max Working Voltage, IEC (Ui) | 1,000 VAC/DC |
| Max Working Voltage, UL (Vin) | 600 V |
| Short Term Withstand Current (Icw) 1s | 11.8kA |
| Peak Short Circuit Current (Ipk) | 30 kA |
| Rated Conditional Short-Circuit Current (Icc) | 15 kA |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Line Side Number of Connections | 1 |
| Line Side Compact Stranded Wire Size | 10- 70mm² |
| Line Side Wire Size | #8 – 3/0 |
| Load Side Number of Connections | 7 |
| Load Side Compact Stranded Wire Size | (1) 6 - 16 mm² (6) 2,5 - 16 mm² |
| Load Side Stranded Wire Size - Ferrule | (1) 6- 16 mm² (4) 2,5 - 16 mm² |
| Load Side Wire Size | (1) #14 - #2 Stranded #14-#10 Solid (6) #14 - #4 |
| Enclosure Rating | IP 20 |
| Unit Weight | 0.15 kg |
| Flammability Rating | 94V-0 |
