Rated voltage (Un):240V~
Rated current (In):6A,10A,16A,20A,25A,32A,40A
Rated residual operation current:0.03A,0.1A,0.3A
Number of Poles:1P+N
Rated breaking capacity:6KA

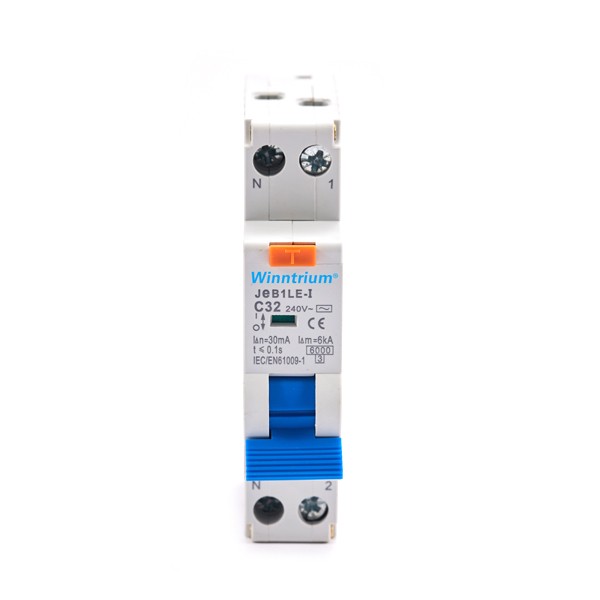

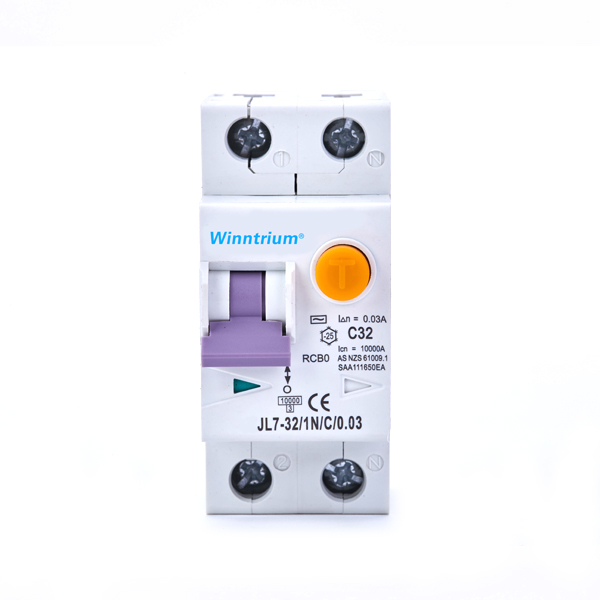

Winntrium SAA Certified RCBO Breaker is a residual current circuit breaker with overcurrent protection and monitors electrical circuits to keep them running safely, disconnecting the circuit if it's unbalanced. These devices are commonly used where there is a need to combine protection against overload, short circuit and earth leakage currents.We also offer 4.5KA SAA certified RCBOs.
Technical Data | SAA Certified RCBO |
Rated voltage (Un) | 240V~ |
Rated current (In) | 6A,10A,16A,20A,25A,32A,40A |
Rated residual operation current | 0.03A,0.1A,0.3A |
Non Rated residual operation current | 0.5In |
Number of Poles | 1P+N |
Tripping characteristic | B Type,C Type |
Rated breaking capacity | 6KA |
Torque | 2.5N.m |
Certificate | CE,CB,SAA |
