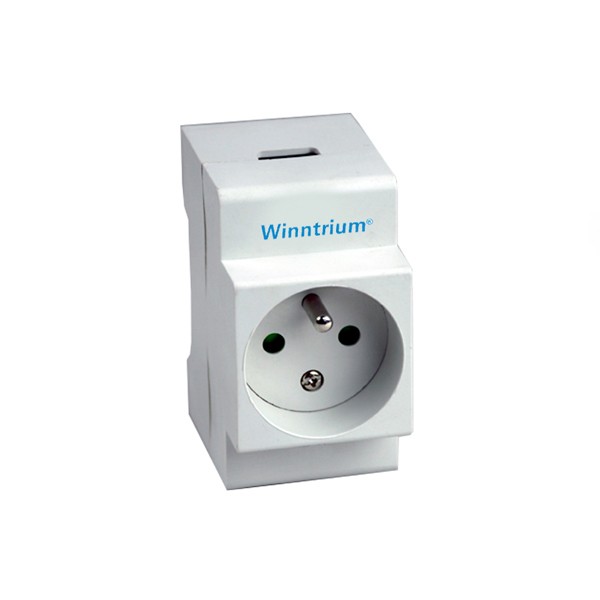

Din Rail Modular French Type Socket

WTP7 modular french type socket can be used together with our other modular products for connection of mobil devices, tools or electric and electronic non-modular equipments directly inside civl and industrial switchboards.

Technical data
Frequency: 50 or 60Hz Mounting category: ILIM
Eletrical life: 5000times Pllution degree:2
Rated insulatio voltge Ui:500V Protection class: IP20
Roted impulse withstond woltoge Stondard mounting: 35mm DIN rail
Uimp:5000V Ambient temperature:-5T to +40C
Dielectric test voltage at ind. Freq. Storoge temperature: -25Cto +70C
For 1 min.: 2.8kV
