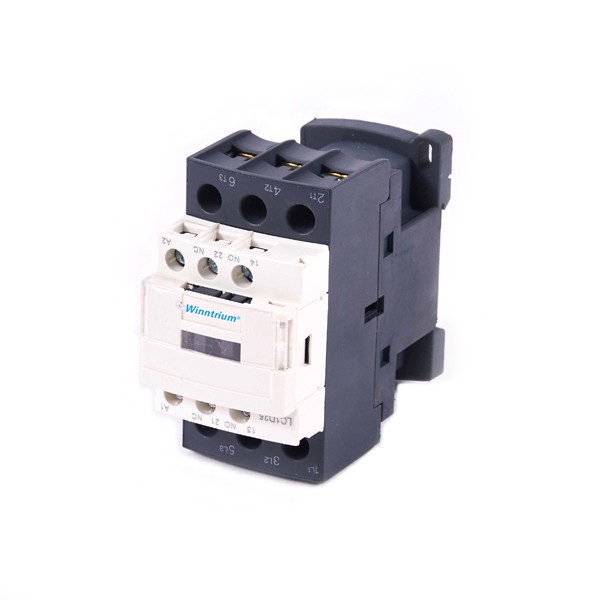

Magnetic AC Contactor

WTC2 series ac contactors are suitable for using in circuit of frequency 50/60Hz, rated insulation voltage up to 1000v, rated operation current 9-95A under AC-3 duty. It is mainly used for making/breaking electric circuits at a long distance for frequent starting/stopping&controlling AC motors. It is used in combination with a thermal relay to compose of a magnatic starter. It is in conformity with the standards of IEC60947.4.1 and GB14048.4.

• 1.1 Certificates: CE;

• 1.2 Electric ratings: AC50/60Hz, 690V, up to 620A ;

• 1.3 Application: remote making & breaking      circuits, protect circuit from over-load when assembling with thermal      over-load relay, frequent start-up and control of AC motor; .

• 1.4 Utilization category: AC-3, AC-4;

• 1.5 Altitude:≤2000m;

• 1.6 Ambient temperature: -5℃~ +40℃;

• 1.7 Mounting category: Ⅲ;

• 1.8 Mounting conditions: inclination between the      mounting plane and the vertical plane should not exceed 5° ;

• 1.9 Standard: IEC/EN 60947-4-1.

Technical Data
